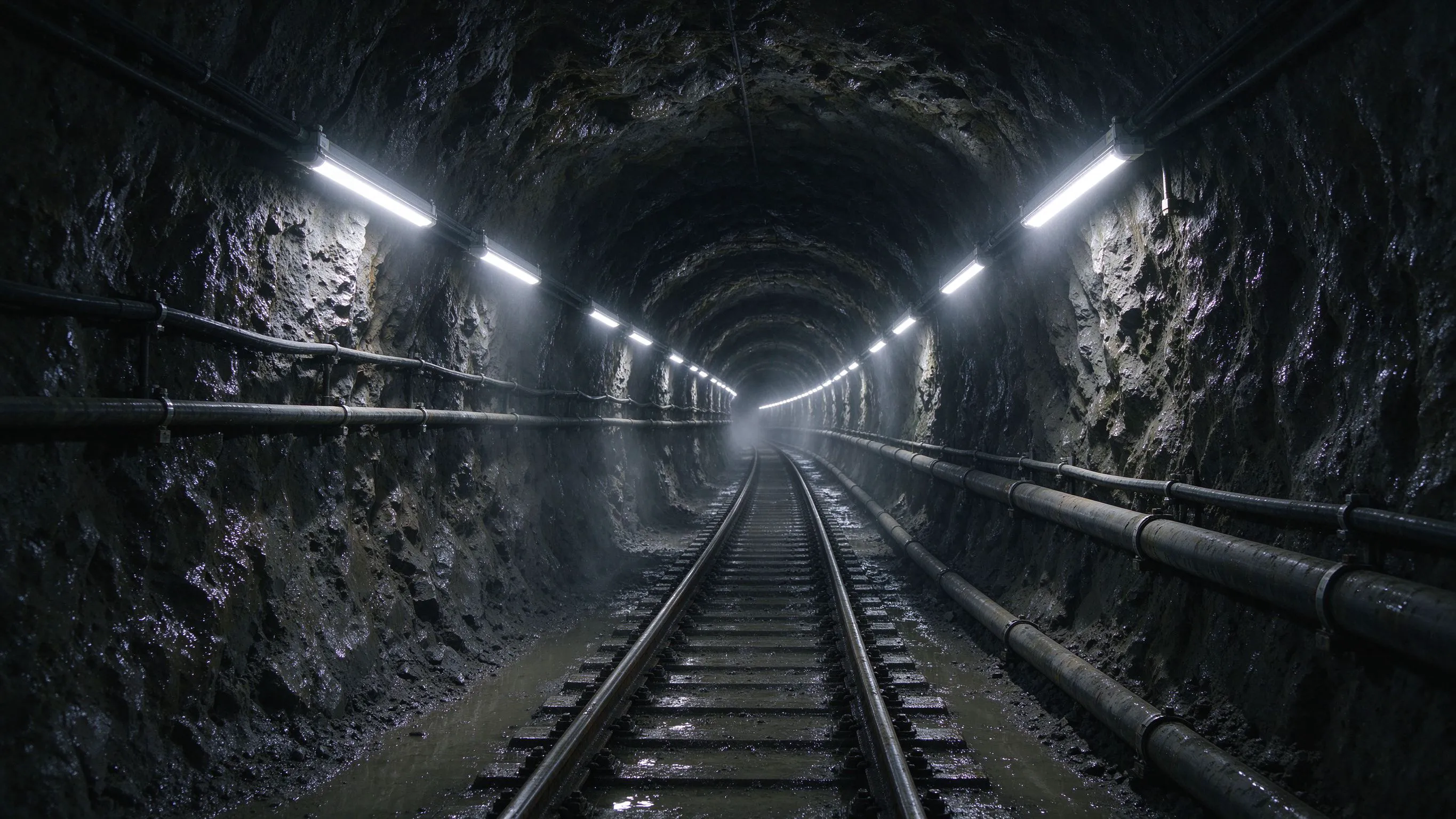

Mining & Tunnel Industrial LED Strip Lighting: Rugged, Continuous Light for Harsh Sites
- 2026-09-30 17:38
- /
- Arraystar LED
Mining and tunnel lighting demands continuous, rugged, vibration-resistant illumination over very long runs in wet, dusty, hazardous surroundings - an extreme version of the construction case where reliability directly affects safety. Purpose-built industrial mining LED strip, sealed and impact-tolerant, runs continuously along tunnels and shafts, fed by appropriately rated waterproof power supplies. Specify for the actual environment (ingress, impact, gas-dust hazard classification), use continuous light rather than spaced fittings, and treat certified safety ratings as non-negotiable.
Tunnels Punish Conventional Lighting
Underground tunnels, mine passages and service galleries present some of the hardest lighting conditions in industry: very long linear runs, persistent moisture and dust, vibration from equipment, no natural light, and a zero-tolerance context where dark gaps are a genuine safety hazard rather than an inconvenience.
Spaced traditional fittings leave the gaps between them dim, and those gaps are where trip hazards, equipment and signage get missed. Continuous linear lighting along the tunnel wall maintains a uniform floor and wall brightness that dramatically improves visibility and safety - which is why purpose-built industrial strip exists for this environment.
Industrial Strip Built for Mining and Tunnels
This is not consumer tape. Industrial LED strip lighting engineered for mining and tunnels uses rugged, sealed construction resistant to water, dust, vibration and impact, with the ingress and mechanical ratings the underground environment demands. It's designed to run continuously along the tunnel wall or conduit for hundreds of meters.
Two complementary industrial strip products cover the tunnel: the primary continuous run along the passage wall for uniform ambient and wayfinding, and a variant suited to the working face and equipment zones where brightness and durability are pushed hardest. Both replace the patchy pools of spaced fittings with an unbroken lit line that keeps floor edges, rails and signage visible.
- Continuous wall-mounted light keeps floor edges and walkways uniformly visible.
- Specify the correct IP/IK ratings for water, dust and impact in the passage.
- Match any hazardous-area (gas/dust) classification with certified fixtures.
- Mount at a consistent height clear of vehicle and equipment impact zones.
- Use the rugged product at the working face; standard runs along egress routes.
Lighting the Working Face and Egress Separately
A tunnel has two different lighting needs. The working face and active excavation area need high-brightness, high-durability light where machinery operates, while the haulage and egress passages behind it need reliable continuous wayfinding light over very long distances. Treating them as one uniform system either over-lights the egress or under-lights the face.
Use the heavy-duty industrial mining strip at the face and around machinery where impact and vibration peak, and the continuous industrial light along the haulage and escape routes where uniformity and run length matter most. Escape and emergency routes in particular benefit from an unbroken lit line that remains legible through dust.
Powering Long Underground Runs Safely
Long tunnel runs need power distributed deliberately, with supplies located in dry, protected niches or equipment bays and rated for the damp underground environment. A 250W waterproof power supply (or a network of them at intervals) feeds sections of the run, with protection and isolation appropriate to the site's electrical standards.
Plan the power architecture around the tunnel's length - sectional feeds keep runs even and make faults easier to isolate - and specify waterproof, dust-tested supplies and connectors throughout. In any classified hazardous atmosphere, every electrical component, including supplies and connections, must carry the appropriate certification; this is not optional.
Safety Standards, Maintenance and the Business Case
Mining/tunnel lighting requirements at a glance.
| Consideration | Industrial tunnel requirement |
|---|---|
| Ingress protection | High IP rating for continuous moisture and dust |
| Impact / vibration | Rugged sealed construction, IK rated |
| Hazardous areas | Certified components for gas/dust classification |
| Continuity | Unbroken line; no dark gaps on egress/escape routes |
| Power | Sectional waterproof supplies, protected niches, isolation |
| Maintenance | Modular sections for fast replacement in harsh conditions |
Beyond safety, continuous LED strip cuts the energy and maintenance burden of tunnel lighting dramatically versus legacy fittings, and modular sections mean a damaged length is swapped quickly without darkening a whole passage. Specify once for the real underground environment and the total cost over the tunnel's life is far lower than repeated replacement of unsuitable product.
Recommended Products
Frequently Asked Questions
What LED strip is suitable for mining tunnels and underground passages?
Purpose-built industrial mining-rated LED strip with rugged sealed construction, high ingress (IP) and impact (IK) ratings, and vibration resistance, run continuously along the tunnel wall for uniform wayfinding light. In any gas/dust-classified hazardous area, all components must carry the appropriate safety certification.
Why is continuous strip better than spaced tunnel lights?
Spaced fittings leave dark gaps between them where trip hazards, rails, equipment and signage are missed; a continuous lit line along the wall keeps floor edges and egress routes uniformly visible even through dust, which directly improves underground safety. It also reduces the pool-and-shadow effect that fatigues the eyes.
How do you light a tunnel working face differently from the passage?
Use the heaviest-duty, highest-brightness industrial strip at the active working face and around machinery where impact and vibration peak, and continuous (slightly lower intensity) industrial strip along the haulage and escape routes where uniformity and very long runs matter. Escape routes specifically need an unbroken, dust-legible lit line.
How are long underground LED strip runs powered?
Distribute sectional waterproof power supplies (around 250W each) in dry, protected equipment niches or bays along the tunnel rather than one remote feed, using waterproof dust-tested connectors and proper isolation so faults are easy to localize. All electrical components must be certified for the site's hazardous-area classification.
What safety certifications matter for underground LED lighting?
The relevant ingress (IP) and mechanical impact (IK) ratings for moisture, dust and impact, plus - critically - the hazardous-area certification required for any atmosphere classified for gas or combustible dust. Only certified fixtures, supplies and connectors may be used in classified zones, installed to the site's electrical and mining standards.
